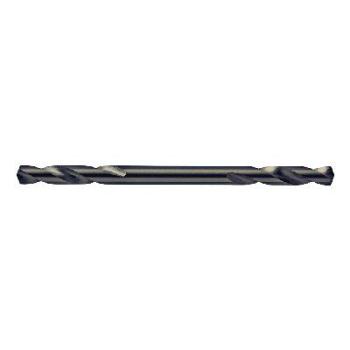

DRILL PANEL NO.20 D/ENDED BLUE 105574

DRILL PANEL NO.20 D/ENDED BLUE 105574
Product code: SUDPT20
Manufacturer code: D1250409
DRILL PANEL NO.20 D/ENDED BLUE 105574

or Register to view pricing

Sutton Tools Blue Bullet panel drills have been developed to drill holes for rivets in flat and curved panels and used in sheet metal fabrication. The blue finish reduces chip build up on the cutting edge and is a better choice when drilling ferrous materials. The double ended design doubles the life of the drill bit. Note:Ensure the chuck jaws are fully tightened.

•135° self centering point minimises wandering when starting and ideal for thin materials
•Flute length designed for shallow hole drilling no deeper than 1.25mm x diameter
•Double ended design increases drill life. Ensure that the chuck jaws are fully tightened
•Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
•Blue surface finish for ferrous applications. The steam oxide finish prevents chip build-up on the cutting edges and reduces cutting friction, especially in low carbon steels
Brand:Sutton
Series:D125
Diameter:
Flute Length:5/8 in
Overall Length:2-1/8 in
Panel Drill Size:
Rivet Size:4 in;5/32 in
Material:High Speed Steel
Finish:Blue
