Italian Made Welder Ideal Site & Field Work, Maintenance Or Light Fabrication!:

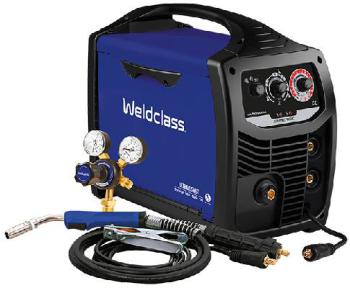

European quality in a compact and very easy-to-use package. Weighing just 9kg, the 175MST is supplied with 10A power plug and is fitted with an industrial quality Euro torch system. An ideal choice for site and field work, maintenance or light fabrication. MIG weld up to 6mm steel, Stick weld with up to 3.2mm electrodes or try your hand at TIG welding of steel & stainless. Comes with European-made 3m heavy-duty 250A Euro-fit MIG torch, gas regulator, drive rollers for solid & gasless wires, 3m earth lead & 10A plug fitted. Handy reference guide sticker printed inside the door of the welder for easy settings reference.
Inclusions:
- MIG Torch H/Duty BZL 25 3m (made in Europe)
- Earth Lead 3m (made in Europe)
- Gas Regulator (made in Europe)
- Driver Roller for 0.6/0.8/0.9mm steel/solid wire
- Driver Roller for 0.8/0.9mm gasless wire
More information | Reviews & Videos | Register Warranty
Functions:
- MIG (Gas / Gasless)
- Stick / MMA
- TIG (Lift-Arc)
Applications:
- MIG welding <175A with solid mild steel (0.6-0.9mm), gasless flux-cored (0.8-0.9mm), stainless-steel (0.8mm), aluminium (0.9-1.0mm), & bronze/brazing (0.8mm) wires
- Stick/MMA welding <150A with most types of common electrodes (2.0-3.2mm), including steel, stainless, hardfacing & more
- TIG welding <150A (DC lift-arc) of steel, stainless, copper & chrome molly up to 3mm max thickness (NOT suitable for TIG welding of aluminium - this requires AC/DC TIG capability, such as the Weldforce 202T)
Features:
- Made in Italy to Weldclass specifications, in one of Europe's largest & most experienced welding machine manufacturing plants
- Very easy-to-use Synergic MIG controls: Adjust single dial according to material thickness & machine will automatically set the correct voltage and wire speed
- Very compact and portable, weighs 9kg
- Takes 1kg (D100mm) or 5kg (D200mm) spools
- Generator friendly (minimum 7kva, ideal 8kva+)
- Stick/MMA Arc-Force % adjustment

Dimensions (incl. handle): L450 x W235 x H370 mm
Standard: AS 60974.1
Power Supply: 240V 1-Phase
Output Cable Terminals: 10-25 (Standard)
Protection Class: IP23
Welding Current / Voltage Output: 20-140A (max 170A)
Duty Cycle (40°C): 140A @ 20%80A @ 60%60A @ 100%
Wire Sizes / Capacity: 0.6, 0.8, 0.9 (gas & gasless)
Welding Current Output: 20-120A (max 150A)
Duty Cycle: 120A @ 30%
MMA Electrode Size / Capacity: 1.6 – 2.4mm
TIG Tungsten Electrode Size/Capacity: 1.6mm
Warranty:
- 10 Year Warranty (if registered within 30 days of purchase)
30-Day Money-Back Guarantee
