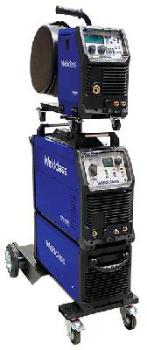

Weldclass FORCE 400 Amp 395MST MIG/TIG/Arc Welder With Separate Wire Feeder & Toolbox Trolley:
With an output of 400A @ 60% and single or double pulse MIG functions, the Force 395MST is not your average workhorse. MIG, Pulse MIG, DC TIG and Stick/MMA functions. Features include: Straight forward & easy-to-use controls (synergic or manual), 4-roll geared drive system, Job save, and more. Comes with 4m MIG torch, SWF106 wire feeder, long 10m and short 800mm interconnecting lead sets, 2-stage gas-saving regulator, 6m earth lead.
Includes:
- FORCE 395MST MIG/TIG/Arc Welder
- MIG Torch 4m BZL 36
- Earth Lead H/Duty 6m
- Gas Regulator
- Long 10m interconnecting cable - use when wire feeder is used as a 'traveller'
- Short 800mm interconnecting cable set - use when wire feeder is positioned on top of power source
- Driver Roller for 0.9/1.2mm steel/solid wire
- SWF106 Wire Feeder
- Toolbox Trolley
Features:
- 400A max MIG output @ 60% duty cycle
- Single-Pulse and Double-Pulse MIG functions
- Manual or Synergic MIG controls (enter material type & thickness and machine will set parameters automatically)
- Job Save - store custom settings for up to 20 jobs
- Geared 4-Roll Wire Drive System - for super reliable wire feeding
- Heavy-duty interconnecting cables with 50mm2 cable to deliver genuine 400A output from the wire feeder
- Takes 5kg (D200mm) or 15kg (D300mm) spools
- Spool Gun Ready
- MIG functions & adjustments include: Inductance, Soft-Start, Burnback, Pre-Gas Time, Post-Gas Time, 2T/4T Trigger, Spot/Stitch Time
- Additional PULSE MIG functions include: Arc length, Frequency (double pulse), and Balance (double pulse)
- Stick/MMA functions & adjustments include: Hot-Start %, Arc-Force %
- TIG functions & adjustments include: Trigger & Remote Amperage Control on the torch, Post-Gas Time, Slope-Up Time
- Generator Compatible - min 35kva
Unit Dimensions: L680 x W250 x H500mm
Unit Weight: ~35kg
Power Supply: ~415V 3-Phase
Standard: AS 60974.1
MIG Output / Duty Cycle (40°C): 400A @ 60%, 310A @ 100%
Wire Sizes: 0.6, 0.8, 0.9, 1.0, 1.2, 1.6mm
Stick/TIG Output/Duty Cycle: 400A @ 60%
Warranty:
7 Year Warranty* by Weldclass Australia when registered within 30 Days of purchase.
