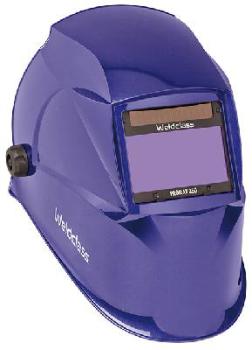

Weldclass PROMAX 350 Blue Auto Welding Helmet - WC-05313:
The PROMAX 350 Auto Welding Helmet is Weldclass most popular auto-darkening welding helmet. The PROMAX 350 electronic welding helmet is suitable for MIG, Stick & TIG welding. Stand-out features include; 4 sensors for reliable switching & a generous viewing area, larger than many other helmets in this class. Variable Dual-Shade 5-8/9-13, Sensitivity & Delay Adjustments, Grind-Mode switch, replaceable battery, magnification lens holder & more. Comfortable, very lightweight & superior optics.
Applications:
- Ideal for MIG & Stick Welding, also suits TIG applications down to 30 amps
- For: Light to Medium Fabrication, Rural, Maintenance, etc
Features:
- Generous Viewing Area: Larger than many other helmets in this class (100 x 53mm)
- 4 Arc Sensors: for reliable arc detection & switching
- Reliable Power Source: Replaceable battery, solar assist, efficient electronics for low power consumption
- Ultra Clear Vision
- Magnification Lens Holder
- Light Weight & Comfortable
- AS1337.1 High-Impact Rated: A must for many work sites
- Grind-Mode: Locks the lens in light shade at the flick of a switch
- Shade, Sensitivity & Delay Adjustments: Precise & easy-to-use controls
- Dual Shade Range 5-8 / 9-13 plus grind mode to cover a wide range of welding processes
- Auto-darkening lens complies with AS1338.1
- 'Hinge & Lock' Lens Retainer System = Easy cover lens replacement, Seals tightly against spatter to prevent damage to electronic lens
- Full Laminate' Lens Construction: Each layer in the electronic lens assembly is firmly laminated for superior optical quality and long service life. This is in contrast to cheaper lenses which are simply glued on the edge and, over time, are prone to contamination and failure
- Auto-on & Auto-off = No buttons to press, Hassle-Free operation
Suitable Welding Processes: MIG, MMA/Stick & TIG (=5 amps), Grinding
Suitable Applications: Light industrial & maintenance, Rural, etc
Switching Speed: Conforms to & exceeds requirements of AS/NZS 1338.1 Standard
Arc Sensing: 4 Sensors
TIG Optimised: Yes. Suitable for low-amp TIG down to 30 amps
Power Supply: 1 x CR2032 replaceable battery & Solar assist
On / Off: Ready to use at any time, no switching required
Inactive Shade (Grind/Off): Shade 4
Active Shade (Weld): 9-13
Sensitivity: Low High
Delay: 0.1 1.0 seconds
Grind Mode: Switchable On/Off
Weight: 480g
Viewing Area: 100x53 mm
Cover Lens - Inner: 116 x 95mm Part No. WC-05321
Cover Lens Outer: 115 x 104mm Part no. WC-05323
Magnification Lens Holder: Takes standard 108x51mm Magnification Lenses
Standards Compliance: Lens: AS/NZS1338.1, EN379, ANSI Z87.1, CSA Z94.3 | Shell: AS/NZS1337.1 High Impact EN 175 B, ANSI Z87.1, CSA Z94.3
Optical Rating: 1/1/1/2 (Optical quality / Diffusion of light / Variation in luminous transmittance / Angle dependency)
Warranty: 2 years (on auto darkening lens)
Temperature Range: Operating -5°C to +55°C / Storage -10°C to +65°C
Warranty:
7 Year Auto-Darkening Lens Warranty (if registered within 30 days of purchase)
