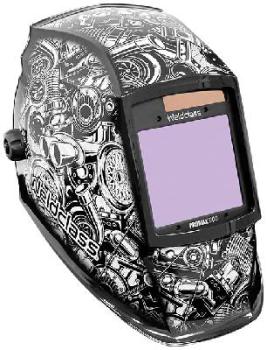

Weldclass PROMAX 500 Revhead Super Size View Auto Welding Helmet:
The auto-darkening welding helmet with Super Size Viewing area, offers more value than you can poke a MIG, TIG or Stick at! PROMAX 500 stand-out features include; Massive 98x87mm Viewing area, 4 sensors for reliable switching, Dual Shade 5-8/9-13, Sensitivity & Delay Adjustments, Grind-Mode switch, Replaceable Battery, Magnification Lens Holder & more. Comfortable, lightweight & superior optics.
Features:
- 4 Arc Sensors - For reliable arc detection & switching
- Super-Size Viewing Area - 98 x 87mm (85cm²)
- Reliable Power Source - Replaceable battery, solar assist, efficient electronics for low power consumption
- Magnification Lens Holder - To put in a magnification lens for when you need a closer look at the job
- Light Weight & Comfortable - Comfortable to wear, & doesnt weigh you down
- AS1337.1 High-Impact Rated - A must for many work sites
- Grind-Mode - Locks the lens in light shade at the flick of a switch.
- Shade, Sensitivity & Delay Adjustments - Precise & easy-to-use controls
- For MIG, Stick Welding & TIG welding down to 5 amps
- Fast & easy cover lens replacement
- Full Laminate lens construction: Each layer in lens assembly is laminated for superior optical quality and reliability
- Bonus helmet bag
Applications: MIG, MMA/Stick & TIG (=5 amps), Grinding, Plasma Cutting, Arc-Air Gouging
Switching Speed: Conforms to & exceeds requirements of AS/NZS 1338.1 Standard
Arc Sensing: 4 Sensors
TIG Optimised: Yes. Suitable for low-amp TIG down to 5 amps
Power Supply: 1 x CR2450 replaceable battery & Solar assist
On / Off: Ready to use at any time, no switching required
Inactive Shade (Grind/Off): Shade 4
Active Shade (Weld): Dual range 5-8 / 9-13
Sensitivity: Low High
Delay: 0.1 1.0 seconds
Grind Mode: Switchable On/Off
Weight: 560g
Viewing Area: 98 x 87mm
Magnification Lens Holder: Takes standard 108x51mm Magnification Lenses
Standards Compliance: Lens: AS1338.1, EN379, ANSI Z87.1, CSA Z94.3, Shell: AS/NZS1337.1 High Impact EN 175 B, ANSI Z87.1, CSA Z94.3
Optical Rating: 1/1/1 (Optical quality / Diffusion of light / Variation in luminous transmittance)
Temperature Range: Operating -5°C to +55°C / Storage -10 to +65°C
Warranty:
7 Year Limited Warranty (if registered within 30 days of purchase)
